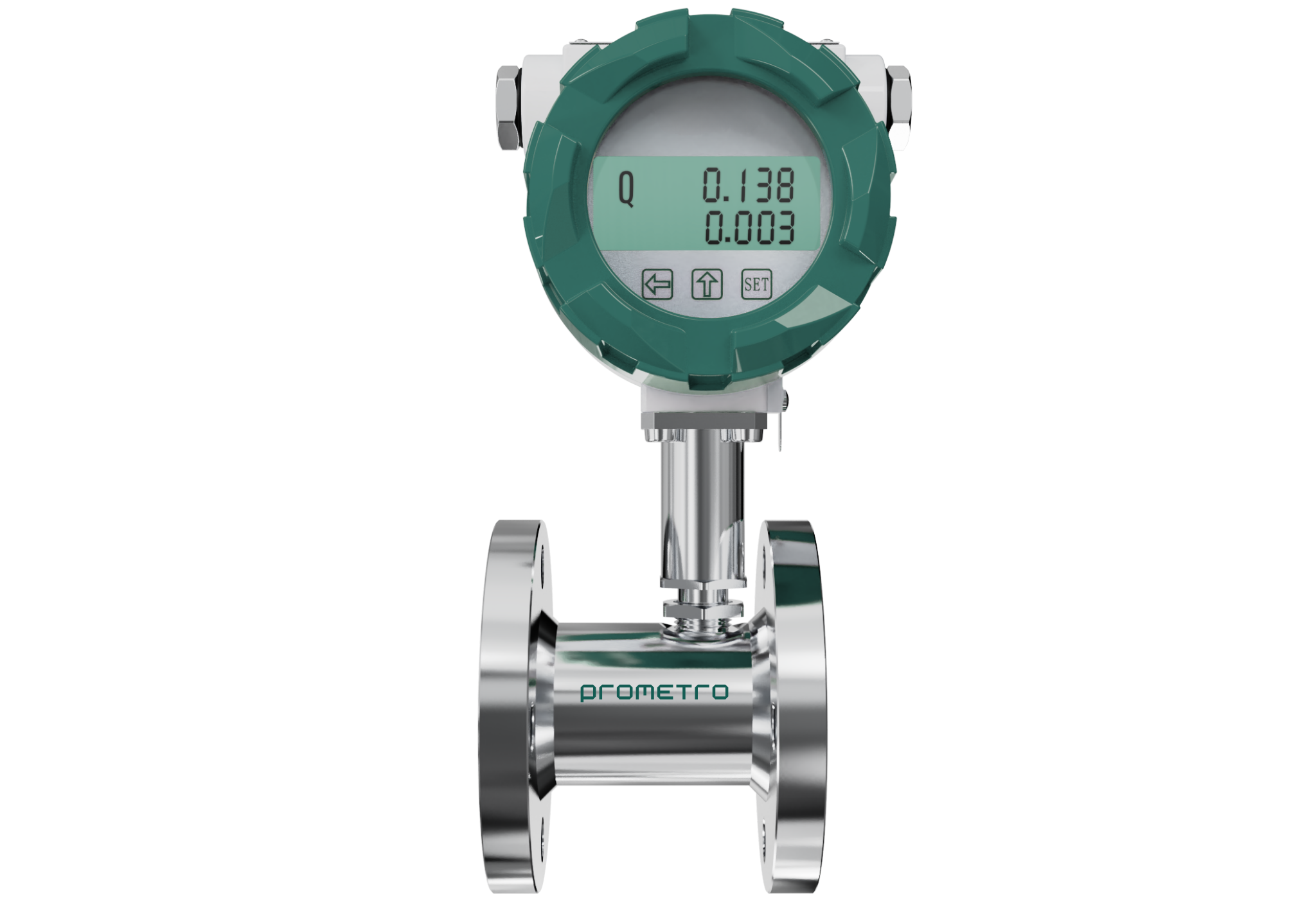

Turbine Flowmeter use a precision-engineered rotor that spins with the liquid flow, measuring volume with high repeatability and low pressure loss. These meters are ideal for clean, low-viscosity liquids such as water, beverage, lubricating oil, hydraulic oil, organic liquid, inorganic liquid without fiberandparticleimpurities,etc. Available in flange, thread, and clamp connection options, they are used across industries like water treatment, food & beverage, and chemical processing, where fast and reliable flow data is critical.
✓ Petrochemical Industry
✓ Metallurgy
✓ Paper Industry
✓ Lubricating Oil
✓ Hudraulic Oil
✓ Phamaceutical
✓ Water Trestment
✓ Food & Beverage
Just fill in the form below — it helps us establish a baseline to find the perfect solution for you. We will reach out to you shortly after submission
Need help?
Just contact us anytime, we are here for you!
Type
Compact/Remote
Accuracy
±0.5%-±1%
Connection Size range
DN4-DN200
Connection type
Flange / Thread / Clamp
Pressure Range Medium
1,0 MPa-6,3 MPa
Temperature Range Medium
-20…+120℃
Temperature Range Ambient
-20...+60℃
Communcation capability and types
RS-485 / Current (4-20 mA) / pulse
Power supply capability and types
24 VDC / 12 VDC
IP grade
IP65 / IP68
Sensor Type
Magnetic detection
Body Material
304 Stainless Steel / 316 Stainless Steel
Impeller material
304 Stainless Steel / 316 Stainless Steel
